Violin plots for group or condition comparisons in within-subjects designs repeated across all levels of a grouping variable.

Source: R/ggwithinstats.R
grouped_ggwithinstats.Rd

A combined plot of comparison plot created for levels of a grouping variable.

Usage

grouped_ggwithinstats(
  data,
  ...,
  grouping.var,
  plotgrid.args = list(),
  annotation.args = list()
)

Arguments

data

A data frame (or a tibble) from which variables specified are to be taken. Other data types (e.g., matrix,table, array, etc.) will not be accepted. Additionally, grouped data frames from {dplyr} should be ungrouped before they are entered as data.

...

Arguments passed on to ggwithinstats

point.path,centrality.path

Logical that decides whether individual data points and means, respectively, should be connected using ggplot2::geom_path(). Both default to TRUE. Note that point.path argument is relevant only when there are two groups (i.e., in case of a t-test). In case of large number of data points, it is advisable to set point.path = FALSE as these lines can overwhelm the plot.

centrality.path.args,point.path.args

A list of additional aesthetic arguments passed on to ggplot2::geom_path() connecting raw data points and mean points.

subject.id

Across repeated measures conditions, each row in the dataset must correspond to a unique unit (e.g., subject or participant). If your data frame is already in such a format, you can ignore the subject.id argument (the function will use row number to pair observations). But if you are not sure, it is always better to specify this argument. Note that if there are any missing values (i.e., NA) in the dependent variable and the subject.id is not specified, they will be dropped using a list-wise approach. If you specify subject.id, partially observed subjects will still be shown in the plot, but inferential statistics will be computed using only complete repeated-measures pairs.

xlab

Label for x axis variable. If NULL (default), variable name for x will be used.

ylab

Labels for y axis variable. If NULL (default), variable name for y will be used.

p.adjust.method

Adjustment method for p-values for multiple comparisons. Possible methods are: "holm" (default), "hochberg", "hommel", "bonferroni", "BH", "BY", "fdr", "none".

pairwise.display

Decides which pairwise comparisons to display. Available options are:

  • "significant" (abbreviation accepted: "s")

  • "non-significant" (abbreviation accepted: "ns")

  • "all"

You can use this argument to make sure that your plot is not uber-cluttered when you have multiple groups being compared and scores of pairwise comparisons being displayed. If set to "none", no pairwise comparisons will be displayed.

pairwise.alpha

Numeric alpha threshold used to decide which pairwise comparisons are displayed when pairwise.display = "significant" or pairwise.display = "non-significant" (Default: 0.05).

bf.message

Logical that decides whether to display Bayes Factor in favor of the null hypothesis. This argument is relevant only for parametric test (Default: TRUE).

results.subtitle

Decides whether the results of statistical tests are to be displayed as a subtitle (Default: TRUE). If set to FALSE, only the plot will be returned.

subtitle

The text for the plot subtitle. Will work only if results.subtitle = FALSE.

caption

The text for the plot caption. This argument is relevant only if bf.message = FALSE.

centrality.plotting

Logical that decides whether centrality tendency measure is to be displayed as a point with a label (Default: TRUE). Function decides which central tendency measure to show depending on the type argument.

  • mean for parametric statistics

  • median for non-parametric statistics

  • trimmed mean for robust statistics

  • MAP estimator for Bayesian statistics

If you want default centrality parameter, you can specify this using centrality.type argument.

centrality.type

Decides which centrality parameter is to be displayed. The default is to choose the same as type argument. You can specify this to be:

  • "parametric" (for mean)

  • "nonparametric" (for median)

  • robust (for trimmed mean)

  • bayes (for MAP estimator)

Just as type argument, abbreviations are also accepted.

point.args

A list of additional aesthetic arguments to be passed to the ggplot2::geom_point().

boxplot.args

A list of additional aesthetic arguments passed on to ggplot2::geom_boxplot(). By default, the whiskers extend to 1.5 times the interquartile range (IQR) from the box (Tukey-style). To customize whisker length, you can use the coef parameter, e.g., boxplot.args = list(coef = 3) for whiskers extending to 3 * IQR, or boxplot.args = list(coef = 0) to show only the range of the data.

violin.args

A list of additional aesthetic arguments to be passed to the ggplot2::geom_violin().

ggplot.component

A ggplot component to be added to the plot prepared by {ggstatsplot}. This argument is primarily helpful for grouped_ variants of all primary functions. Default is NULL. The argument should be entered as a {ggplot2} function or a list of {ggplot2} functions.

palette

Name of the palette in "package::palette" format to be used for coloring. Passed to paletteer::scale_color_paletteer_d(). Run View(paletteer::palettes_d_names) to see all available options.

centrality.point.args,centrality.label.args

A list of additional aesthetic arguments to be passed to ggplot2::geom_point() and ggrepel::geom_label_repel() geoms, which are involved in mean plotting.

ggsignif.args

A list of additional aesthetic arguments to be passed to ggsignif::geom_signif().

ggtheme

A {ggplot2} theme. Default value is theme_ggstatsplot(). Any of the {ggplot2} themes (e.g., ggplot2::theme_bw()), or themes from extension packages are allowed (e.g., ggthemes::theme_fivethirtyeight(), hrbrthemes::theme_ipsum_ps(), etc.). But note that sometimes these themes will remove some of the details that {ggstatsplot} plots typically contains. For example, if relevant, ggbetweenstats() shows details about multiple comparison test as a label on the secondary Y-axis. Some themes (e.g. ggthemes::theme_fivethirtyeight()) will remove the secondary Y-axis and thus the details as well.

x

The grouping (or independent) variable from data. In case of a repeated measures or within-subjects design, if subject.id argument is not available or not explicitly specified, the function assumes that the data has already been sorted by such an id by the user and creates an internal identifier. So if your data is not sorted, the results can be inaccurate when there are more than two levels in x and there are NAs present. The data is expected to be sorted by user in subject-1, subject-2, ..., pattern.

y

The response (or outcome or dependent) variable from data.

type

A character specifying the type of statistical approach:

  • "parametric"

  • "nonparametric"

  • "robust"

  • "bayes"

You can specify just the initial letter.

digits

Number of digits for rounding or significant figures. May also be "signif" to return significant figures or "scientific" to return scientific notation. Control the number of digits by adding the value as suffix, e.g. digits = "scientific4" to have scientific notation with 4 decimal places, or digits = "signif5" for 5 significant figures (see also signif()).

conf.level

Scalar between 0 and 1 (default: 95% confidence/credible intervals, 0.95). If NULL, no confidence intervals will be computed.

bf.prior

A number between 0.5 and 2 (default 0.707), the prior width to use in calculating Bayes factors and posterior estimates. In addition to numeric arguments, several named values are also recognized: "medium", "wide", and "ultrawide", corresponding to r scale values of 1/2, sqrt(2)/2, and 1, respectively. In case of an ANOVA, this value corresponds to scale for fixed effects.

tr

Trim level for the mean when carrying out robust tests. In case of an error, try reducing the value of tr, which is by default set to 0.2. Lowering the value might help.

alternative

a character string specifying the alternative hypothesis, must be one of "two.sided" (default), "greater" or "less". You can specify just the initial letter.

grouping.var

A single grouping variable.

plotgrid.args

A list of additional arguments passed to patchwork::wrap_plots(), except for guides argument which is already separately specified here.

annotation.args

A list of additional arguments passed to patchwork::plot_annotation().

See also

ggwithinstats, ggbetweenstats, grouped_ggbetweenstats

Examples

# for reproducibility
set.seed(123)
library(dplyr, warn.conflicts = FALSE)
library(ggplot2)

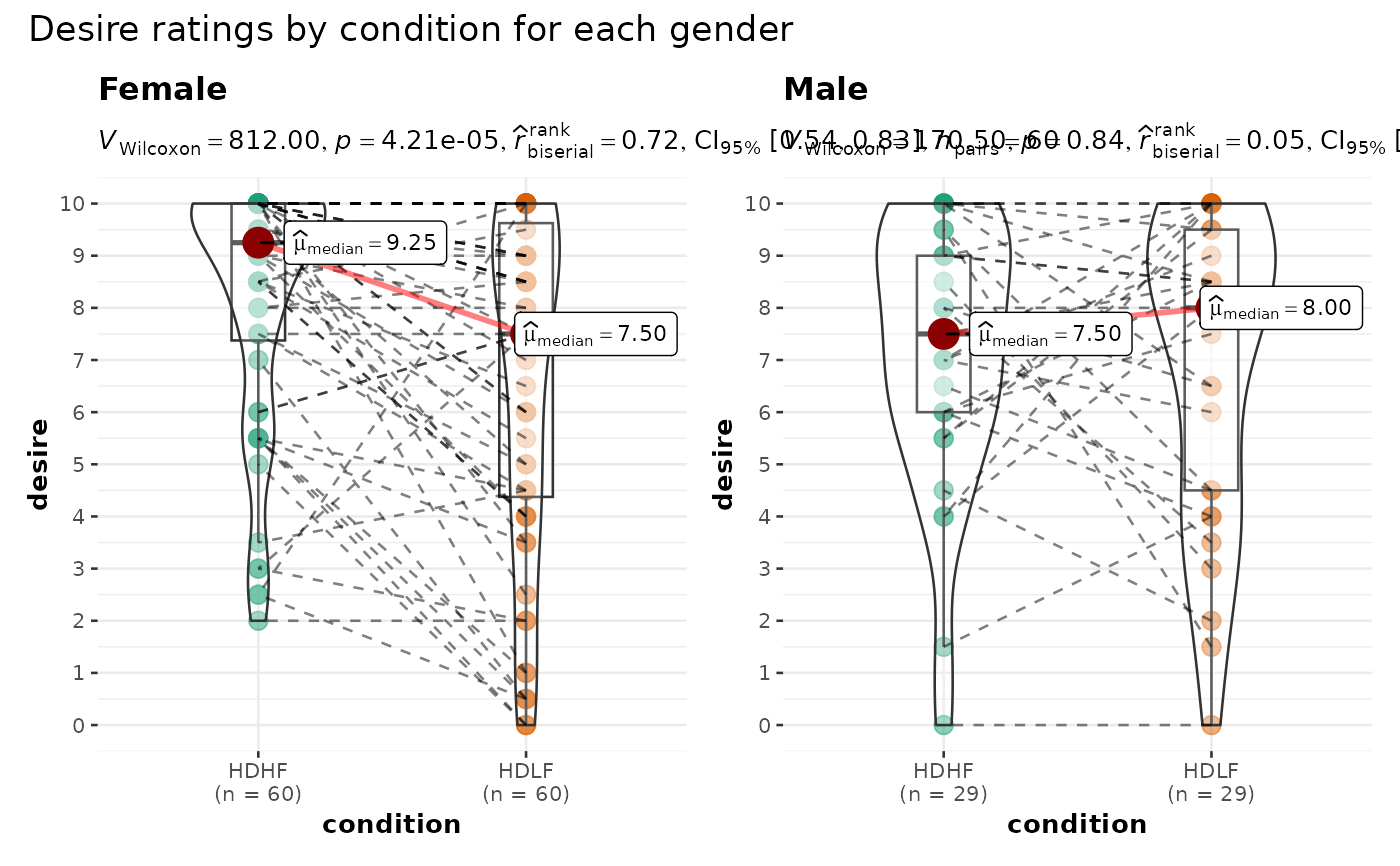

# the most basic function call
grouped_ggwithinstats(
  data             = filter(bugs_long, condition %in% c("HDHF", "HDLF")),
  x                = condition,
  y                = desire,
  subject.id       = subject,
  grouping.var     = gender,
  type             = "np",
  # additional modifications for **each** plot using `{ggplot2}` functions
  ggplot.component = scale_y_continuous(breaks = seq(0, 10, 1), limits = c(0, 10)),
  annotation.args  = list(title = "Desire ratings by condition for each gender")
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
