The function ggcorrmat() provides a quick way to produce publication-ready correlation matrix (aka correlogram) plot. The function can also be used for quick data exploration. The correlations are computed with correlation::correlation() and the plot is produced with ggcorrplot::ggcorrplot(). The type argument decides which correlation coefficient is computed: Pearson’s r ("parametric"), Spearman’s $\rho$ ("nonparametric"), Winsorized Pearson’s r ("robust"), or Bayesian Pearson’s r ("bayes").

We will see examples of how to use this function in this vignette with the gapminder and diamonds dataset.

To begin with, here are some instances where you would want to use ggcorrmat-

to easily visualize a correlation matrix using ggplot2
to quickly explore correlation between (all) numeric variables in the dataset

Correlation matrix plot with `ggcorrmat()`

For the first example, we will use the gapminder dataset (available in eponymous package on CRAN) provides values for life expectancy, Gross Domestic Product (GDP) per capita, and population, every five years, from 1952 to 2007, for each of 142 countries and was collected by the Gapminder Foundation. Let’s have a look at the data-

library(gapminder)

dplyr::glimpse(gapminder)
#> Rows: 1,704
#> Columns: 6
#> $ country   <fct> "Afghanistan", "Afghanistan", "Afghanistan", "Afghanistan", …
#> $ continent <fct> Asia, Asia, Asia, Asia, Asia, Asia, Asia, Asia, Asia, Asia, …
#> $ year      <int> 1952, 1957, 1962, 1967, 1972, 1977, 1982, 1987, 1992, 1997, …
#> $ lifeExp   <dbl> 28.801, 30.332, 31.997, 34.020, 36.088, 38.438, 39.854, 40.8…
#> $ pop       <int> 8425333, 9240934, 10267083, 11537966, 13079460, 14880372, 12…
#> $ gdpPercap <dbl> 779.4453, 820.8530, 853.1007, 836.1971, 739.9811, 786.1134, …

Let’s say we are interested in studying correlation between population of a country, average life expectancy, and GDP per capita across countries only for the year 2007.

The simplest way to get a correlation matrix is to stick to the defaults-

## select data only from the year 2007
gapminder_2007 <- dplyr::filter(gapminder::gapminder, year == 2007)

## producing the correlation matrix
ggcorrmat(
  data = gapminder_2007, ## data from which variable is to be taken
  cor.vars = lifeExp:gdpPercap ## specifying correlation matrix variables
)

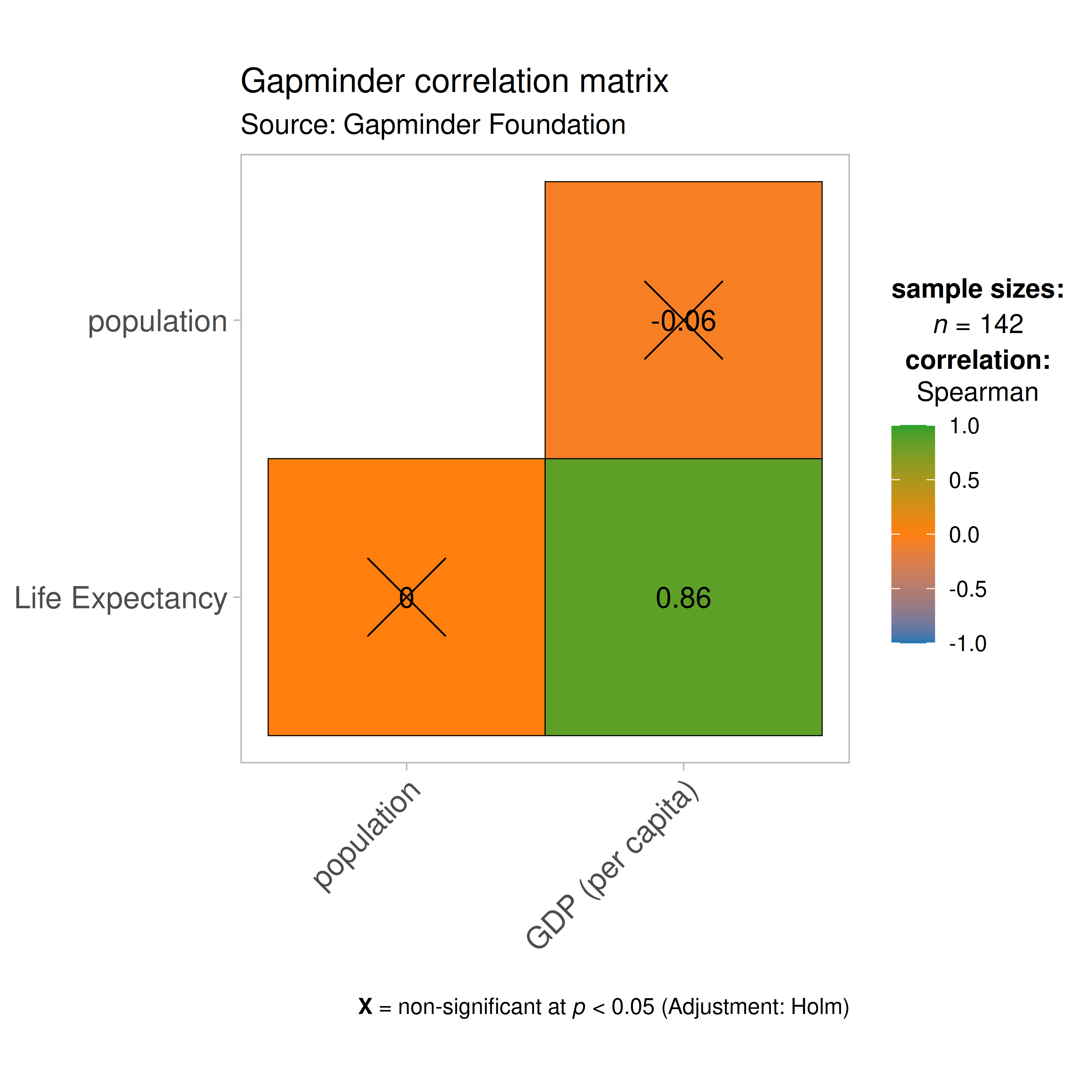

This plot can be further modified with additional arguments-

ggcorrmat(
  data = gapminder_2007, ## data from which variable is to be taken
  cor.vars = lifeExp:gdpPercap, ## specifying correlation matrix variables
  cor.vars.names = c(
    "Life Expectancy",
    "population",
    "GDP (per capita)"
  ),
  type = "np", ## which correlation coefficient is to be computed
  ggtheme = ggplot2::theme_light(), ## selected ggplot2 theme
  matrix.type = "lower", ## correlation matrix structure
  title = "Gapminder correlation matrix", ## custom title
  subtitle = "Source: Gapminder Foundation" ## custom subtitle
)

As seen from this correlation matrix, although there is no relationship between population and life expectancy worldwide, at least in 2007, there is a strong positive relationship between life expectancy and GDP per capita, a well-established indicator of a country’s economic performance.

Given that there were only three variables, this doesn’t look that impressive. So let’s work with another example from ggplot2 package: the diamonds dataset. This dataset contains the prices and other attributes of almost 54,000 diamonds.

Let’s have a look at the data-

library(ggplot2)

dplyr::glimpse(ggplot2::diamonds)
#> Rows: 53,940
#> Columns: 10
#> $ carat   <dbl> 0.23, 0.21, 0.23, 0.29, 0.31, 0.24, 0.24, 0.26, 0.22, 0.23, 0.…
#> $ cut     <ord> Ideal, Premium, Good, Premium, Good, Very Good, Very Good, Ver…
#> $ color   <ord> E, E, E, I, J, J, I, H, E, H, J, J, F, J, E, E, I, J, J, J, I,…
#> $ clarity <ord> SI2, SI1, VS1, VS2, SI2, VVS2, VVS1, SI1, VS2, VS1, SI1, VS1, …
#> $ depth   <dbl> 61.5, 59.8, 56.9, 62.4, 63.3, 62.8, 62.3, 61.9, 65.1, 59.4, 64…
#> $ table   <dbl> 55, 61, 65, 58, 58, 57, 57, 55, 61, 61, 55, 56, 61, 54, 62, 58…
#> $ price   <int> 326, 326, 327, 334, 335, 336, 336, 337, 337, 338, 339, 340, 34…
#> $ x       <dbl> 3.95, 3.89, 4.05, 4.20, 4.34, 3.94, 3.95, 4.07, 3.87, 4.00, 4.…
#> $ y       <dbl> 3.98, 3.84, 4.07, 4.23, 4.35, 3.96, 3.98, 4.11, 3.78, 4.05, 4.…
#> $ z       <dbl> 2.43, 2.31, 2.31, 2.63, 2.75, 2.48, 2.47, 2.53, 2.49, 2.39, 2.…

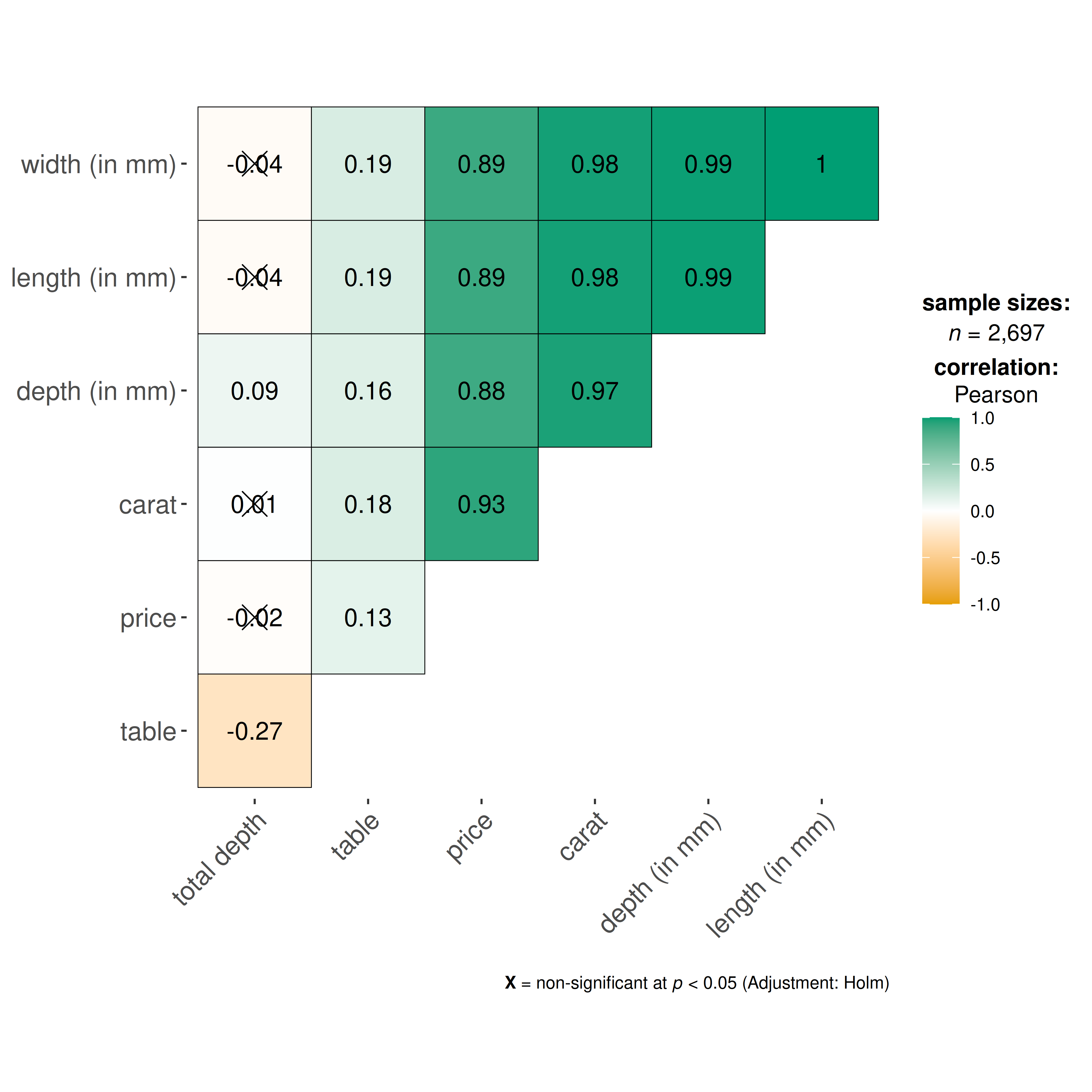

Let’s see the correlation matrix between different attributes of the diamond and the price.

## let's use just 5% of the data to speed it up
diamonds_sample <- dplyr::slice_sample(ggplot2::diamonds, prop = 0.05)

ggcorrmat(
  data = diamonds_sample,
  cor.vars = c(carat, depth:z), ## note how the variables are getting selected
  cor.vars.names = c(
    "carat",
    "total depth",
    "table",
    "price",
    "length (in mm)",
    "width (in mm)",
    "depth (in mm)"
  ),
  ggcorrplot.args = list(outline.color = "black", hc.order = TRUE)
)

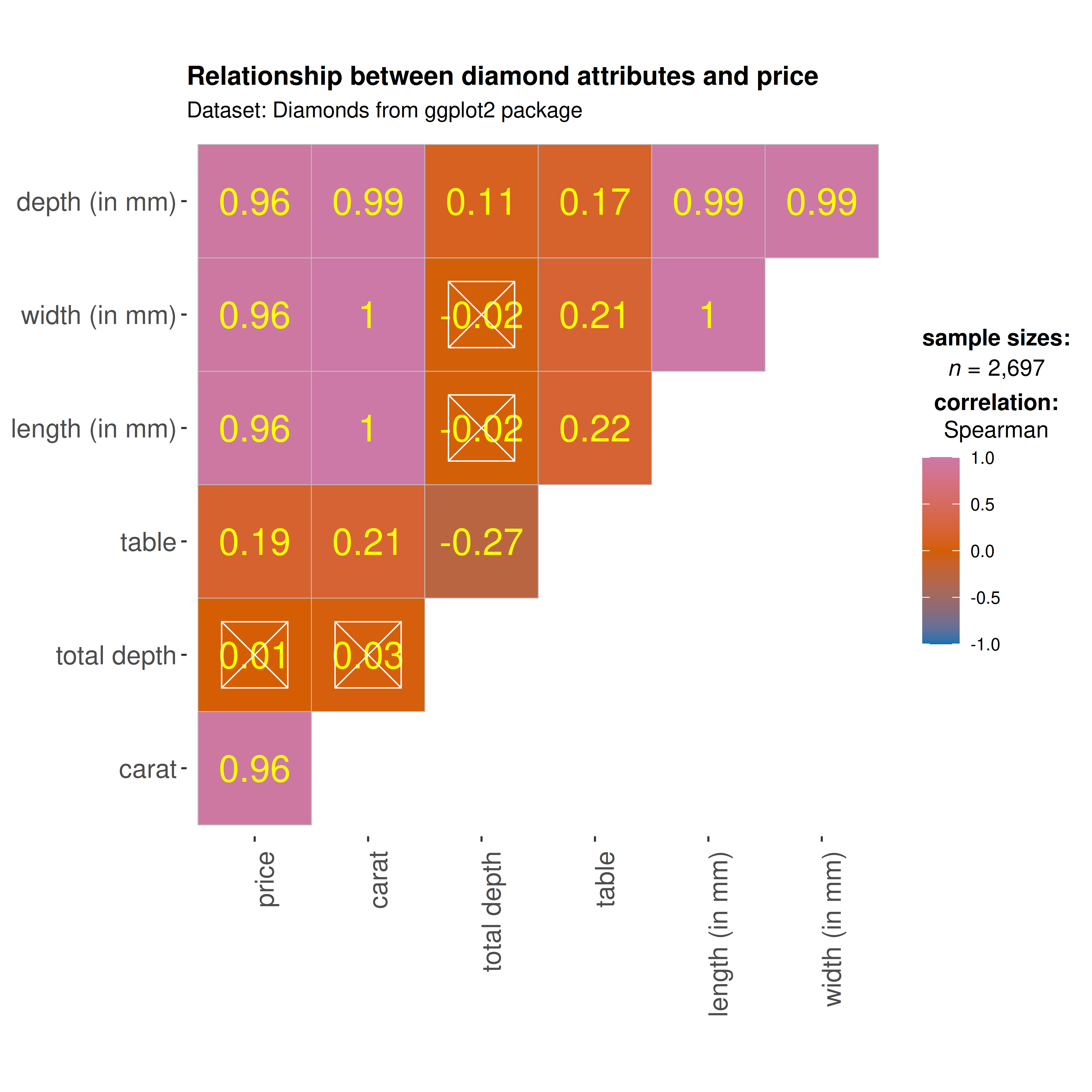

We can make a number of changes to this basic correlation matrix. For example, since we were interested in relationship between price and other attributes, let’s make the price column the first column. Additional arguments for ggcorrplot::ggcorrplot() can be passed via ggcorrplot.args. Note that a list supplied to ggcorrplot.args replaces the default list (see formals(ggcorrmat)$ggcorrplot.args) instead of being merged with it.

ggcorrmat(
  data = diamonds_sample,
  cor.vars = c(price, carat, depth:table, x:z), ## note how the variables are getting selected
  cor.vars.names = c(
    "price",
    "carat",
    "total depth",
    "table",
    "length (in mm)",
    "width (in mm)",
    "depth (in mm)"
  ),
  type = "np",
  title = "Relationship between diamond attributes and price",
  subtitle = "Dataset: Diamonds from ggplot2 package",
  pch = "square cross",
  ## additional aesthetic arguments passed to `ggcorrplot::ggcorrplot()`
  ggcorrplot.args = list(
    lab_col = "yellow",
    lab_size = 6,
    tl.srt = 90,
    pch.col = "white",
    pch.cex = 14
  )
) + ## modification outside `{ggstatsplot}` using `{ggplot2}` functions
  ggplot2::theme(
    axis.text.x = ggplot2::element_text(
      margin = ggplot2::margin(t = 0.15, r = 0.15, b = 0.15, l = 0.15, unit = "cm")
    )
  )

As seen here, and unsurprisingly, the strongest predictor of the diamond price is its carat value, which is a unit of mass equal to 200 mg. In other words, the heavier the diamond, the more expensive it is going to be.

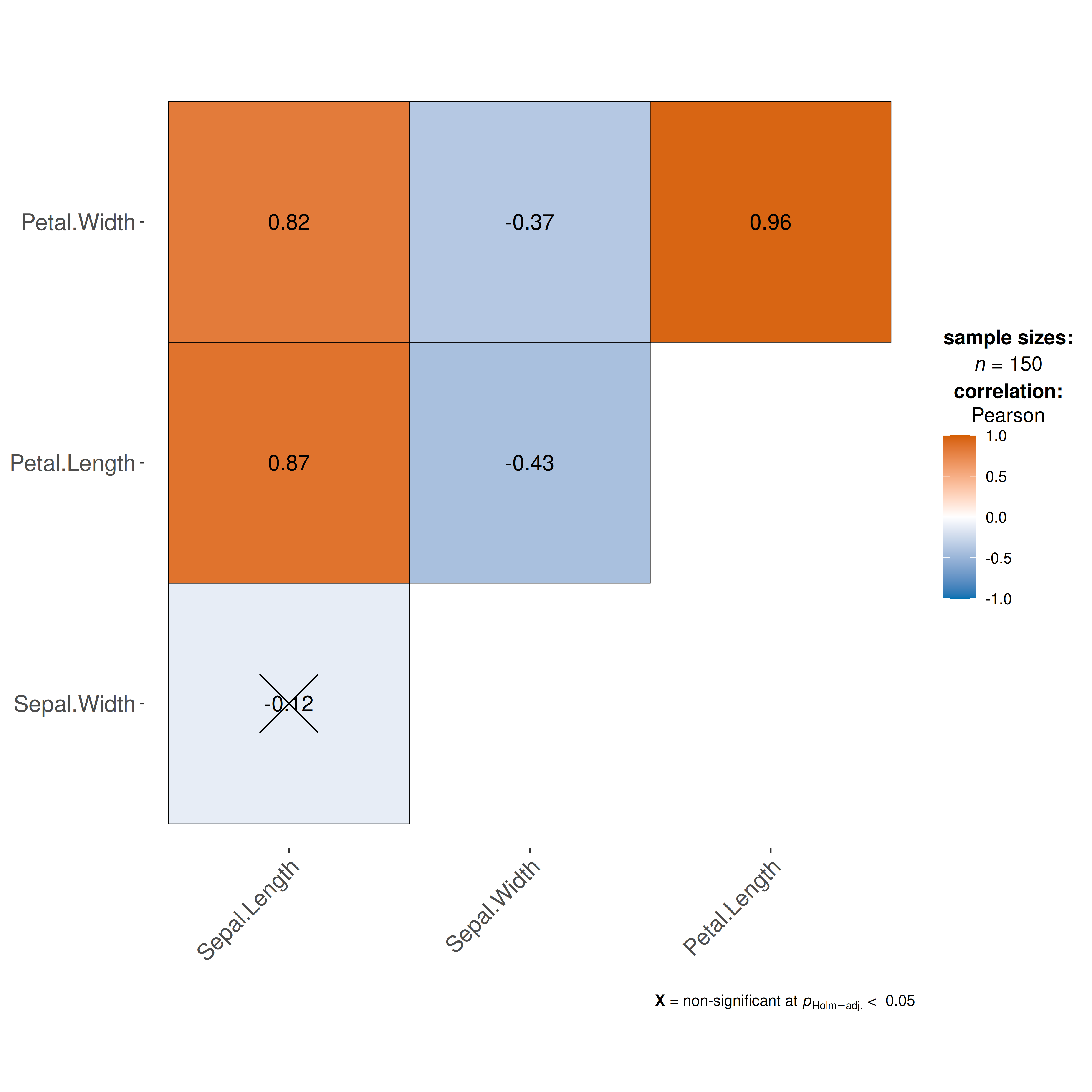

Custom gradient colors

The colors argument accepts a character vector of three colors — for negative, zero, and positive correlations. Choose a diverging palette so that the sign of the correlation is immediately visible:

ggcorrmat(
  iris,
  colors = c("#0072B2", "white", "#D55E00")
)

Grouped analysis with `grouped_ggcorrmat`

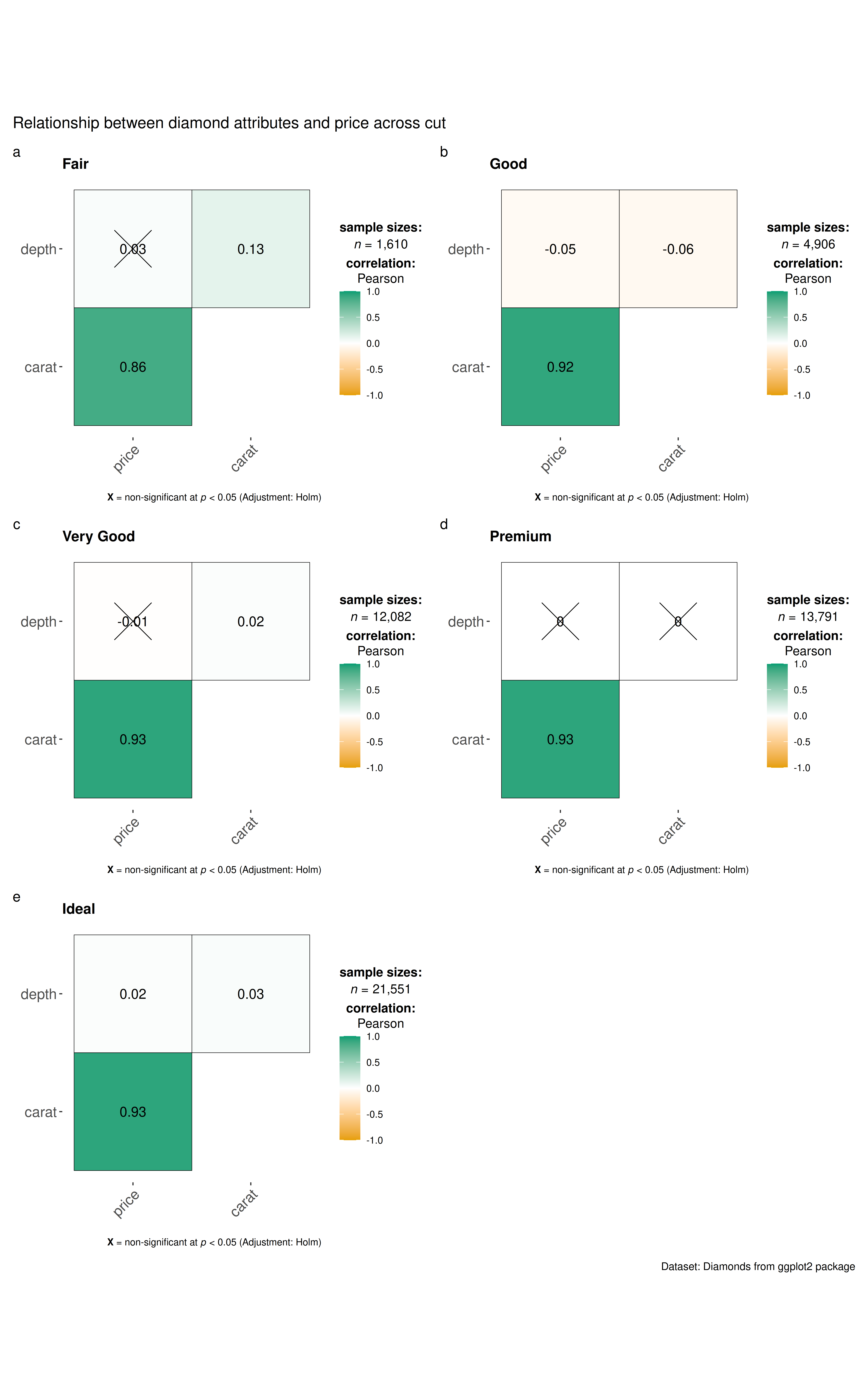

What if we want to do the same analysis separately for each quality of the diamond cut (Fair, Good, Very Good, Premium, Ideal)?

ggstatsplot provides a special helper function for such instances: grouped_ggcorrmat(). This is merely a wrapper function around combine_plots(). It applies ggcorrmat() across all levels of a specified grouping variable and then combines list of individual plots into a single plot.

grouped_ggcorrmat(
  ## arguments relevant for `ggcorrmat()`
  data = ggplot2::diamonds,
  cor.vars = c(price, carat, depth),
  grouping.var = cut,
  ## arguments relevant for `combine_plots()`
  plotgrid.args = list(nrow = 3),
  annotation.args = list(
    tag_levels = "a",
    title = "Relationship between diamond attributes and price across cut",
    caption = "Dataset: Diamonds from ggplot2 package"
  )
)

Note that this function also makes it easy to run the same correlation matrix across different levels of a factor/grouping variable.

Data frame

Unlike other ggstatsplot functions, ggcorrmat() does not store its statistical details for extract_stats(). If you want a data frame of (grouped) correlation matrix, use correlation::correlation() instead, which is also what ggcorrmat() uses internally. It can also do grouped analysis when used with output from dplyr::group_by().

correlation::correlation(dplyr::select(gapminder_2007, lifeExp:gdpPercap))
#> # Correlation Matrix (pearson-method)
#>
#> Parameter1 | Parameter2 |     r |        95% CI | t(140) |         p
#> --------------------------------------------------------------------
#> lifeExp    |        pop |  0.05 | [-0.12, 0.21] |   0.56 | > .999
#> lifeExp    |  gdpPercap |  0.68 | [ 0.58, 0.76] |  10.93 | < .001***
#> pop        |  gdpPercap | -0.06 | [-0.22, 0.11] |  -0.66 | > .999
#>
#> p-value adjustment method: Holm (1979)
#> Observations: 142

Grouped analysis with `ggcorrmat()` + `{purrr}`

Although grouped_ function is good for quickly exploring the data, it reduces the flexibility with which this function can be used. This is because the common parameters used are applied to plots corresponding to all levels of the grouping variable and there is no way to customize the arguments for different levels of the grouping variable. We will see how this can be done using the purrr package.

See the associated vignette here: https://www.indrapatil.com/ggstatsplot/articles/web_only/purrr_examples.html

Summary of graphics and tests

graphical element	`geom` used	argument for further modification
correlation matrix	`ggcorrplot::ggcorrplot()`	`ggcorrplot.args`

More details about the correlation coefficients computed for each type can be found in the function documentation: https://www.indrapatil.com/ggstatsplot/reference/ggcorrmat.html
