The function ggwithinstats is designed to facilitate
data exploration, and for making highly customizable
publication-ready plots, with relevant statistical
details included in the plot itself if desired. We will see examples of
how to use this function in this vignette.
To begin with, here are some instances where you would want to use
ggwithinstats-
to check if a continuous variable differs across multiple conditions measured on the same subjects (repeated measures or within-subjects designs)
to compare distributions visually
To illustrate how this function can be used, we will use the
bugs_long dataset throughout this vignette. This data set,
“Bugs”, provides the extent to which men and women want to kill
arthropods that vary in frighteningness (low, high) and disgustingness
(low, high). Each participant rates their attitudes towards all
arthropods. Subset of the data reported by Ryan
et al. (2013). Note that this is a repeated measures design because
the same participant gave four different ratings across four different
conditions (LDLF, LDHF, HDLF, HDHF).
Data format
ggwithinstats() expects data in the
long format: one row per observation, with one column
for the condition (x), one for the measurement
(y), and, ideally, one identifying the subject
(subject.id). This is how bugs_long is
organized:
dplyr::glimpse(bugs_long)
#> Rows: 372
#> Columns: 6
#> $ subject <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 1…
#> $ gender <fct> Female, Female, Female, Female, Female, Female, Female, Fema…
#> $ region <fct> North America, North America, Europe, North America, North A…
#> $ education <fct> some, advance, college, college, some, some, some, high, hig…
#> $ condition <chr> "LDLF", "LDLF", "LDLF", "LDLF", "LDLF", "LDLF", "LDLF", "LDL…
#> $ desire <dbl> 6.0, 10.0, 5.0, 6.0, 3.0, 2.0, 10.0, 10.0, 9.5, 8.5, 0.0, 9.…If your data are in the wide format (one row per
subject and one column per condition), first reshape them with
tidyr::pivot_longer():
# a data frame in the wide format
df_wide <- tidyr::pivot_wider(bugs_long, names_from = condition, values_from = desire)
head(df_wide)
#> # A tibble: 6 × 8
#> subject gender region education LDLF LDHF HDLF HDHF
#> <int> <fct> <fct> <fct> <dbl> <dbl> <dbl> <dbl>
#> 1 1 Female North America some 6 6 9 10
#> 2 2 Female North America advance 10 NA 10 10
#> 3 3 Female Europe college 5 10 10 10
#> 4 4 Female North America college 6 9 6 9
#> 5 5 Female North America some 3 6.5 5.5 8.5
#> 6 6 Female Europe some 2 0.5 7.5 3
# converting it to the long format
df_long <- tidyr::pivot_longer(
df_wide,
cols = c(LDLF, LDHF, HDLF, HDHF),
names_to = "condition",
values_to = "desire"
)
head(df_long)
#> # A tibble: 6 × 6
#> subject gender region education condition desire
#> <int> <fct> <fct> <fct> <chr> <dbl>
#> 1 1 Female North America some LDLF 6
#> 2 1 Female North America some LDHF 6
#> 3 1 Female North America some HDLF 9
#> 4 1 Female North America some HDHF 10
#> 5 2 Female North America advance LDLF 10
#> 6 2 Female North America advance LDHF NASupplying subject.id is strongly recommended: it is used
to pair observations of the same subject across conditions. If it is
omitted, the function assumes that the rows are already sorted in the
same subject order within every condition. Subjects with missing values
in any condition are excluded from both the plot and the statistical
analysis.
Comparisons between conditions with ggwithinstats
Suppose the first thing we want to inspect is the distribution of desire to kill across all conditions (disregarding the factorial structure of the experiment). We also want to know if the mean differences in this desire across conditions is statistically significant.
The simplest form of the function call is-

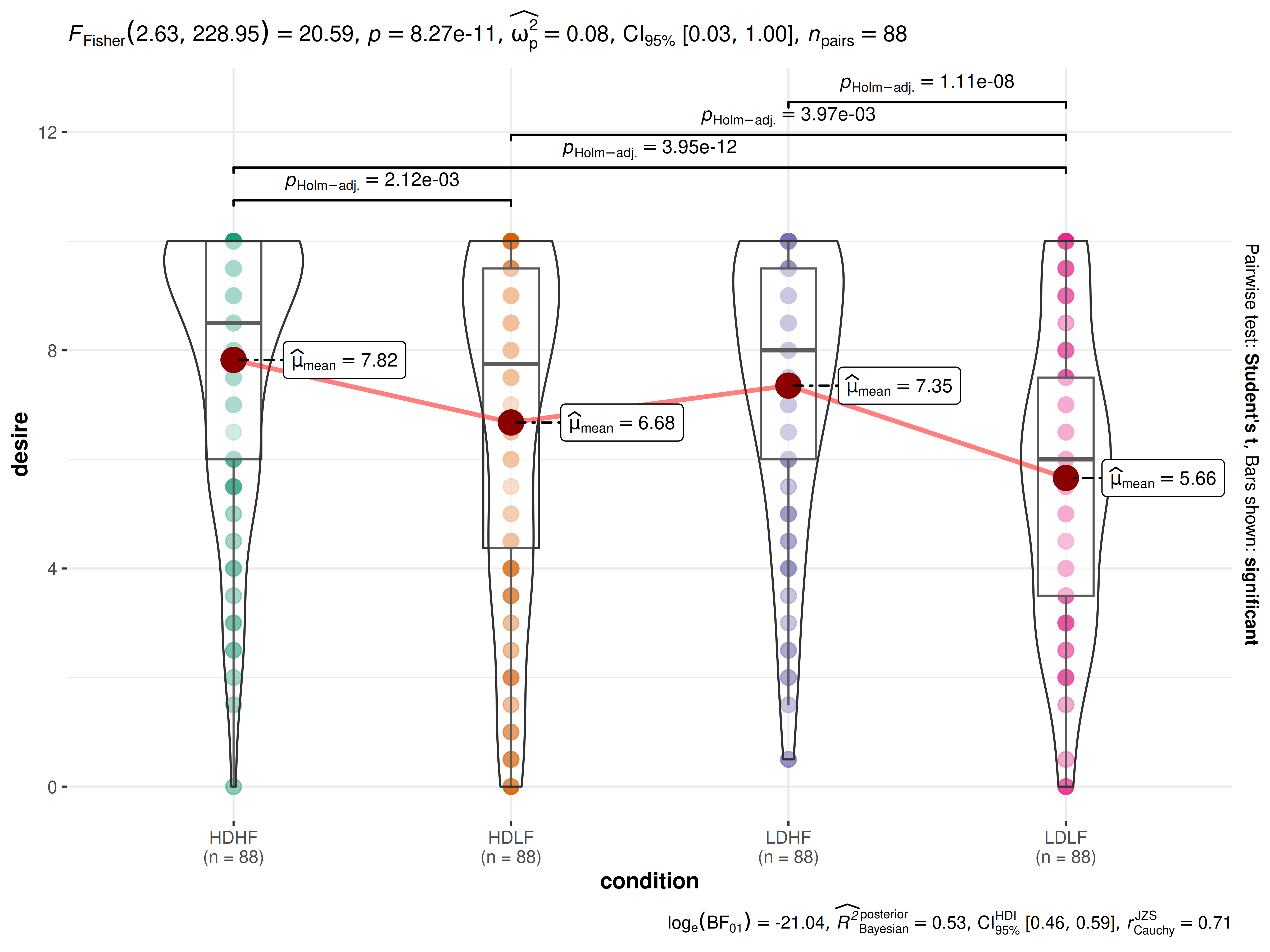

ggwithinstats(
data = bugs_long,
x = condition,
y = desire,
subject.id = subject
)
Note:
The function automatically decides whether a paired samples test (for 2 conditions) or a repeated measures ANOVA (3 or more conditions) is carried out, based on the number of levels in the
xvariable.The output of the function is a
ggplotobject which means that it can be further modified with ggplot2 functions.
As can be seen from the plot, the function by default also returns Bayes Factor for the test in the caption. If the null hypothesis can’t be rejected with the null hypothesis significance testing (NHST) approach, the Bayesian approach can help index evidence in favor of the null hypothesis (i.e., ).
By default, natural logarithms are shown because Bayes Factor values can sometimes be pretty large. Having values on logarithmic scale also makes it easy to compare evidence in favor of alternative () versus null () hypotheses (since ).
We can make the output much more aesthetically pleasing as well as
informative by making use of the many optional parameters in
ggwithinstats. We’ll add a title and caption, better
x and y axis labels. We can and will change
the color palette in use as well. This time, let’s also use a
nonparametric test.

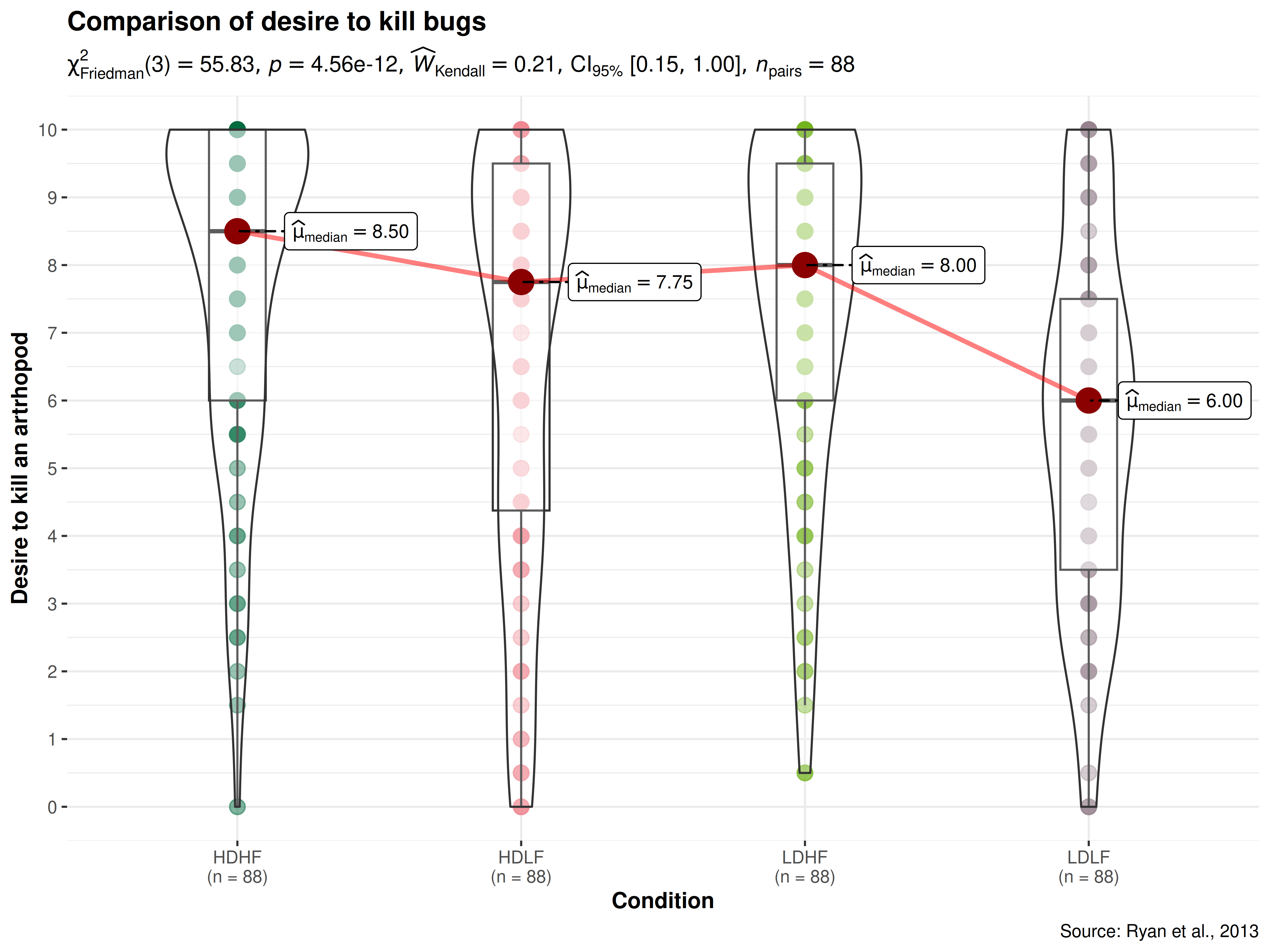

ggwithinstats(
data = bugs_long,
x = condition,
y = desire,
subject.id = subject,
type = "nonparametric", ## type of statistical test
xlab = "Condition", ## label for the x-axis
ylab = "Desire to kill an arthropod", ## label for the y-axis
palette = "yarrr::info2", ## choosing a different color palette
title = "Comparison of desire to kill bugs",
caption = "Source: Ryan et al., 2013"
) + ## modifying the plot further
ggplot2::scale_y_continuous(
limits = c(0, 10),
breaks = seq(from = 0, to = 10, by = 1)
)
As can be appreciated from the effect size (Kendall’s W) of 0.21, there are small differences in the desire to kill across conditions. Importantly, this plot also helps us appreciate the distributions within any given condition.
We can also use other available options: The type (of
test) argument also accepts the following abbreviations:
"p" (for parametric), "np" (for
nonparametric), "r" (for robust),
"bf" (for Bayes Factor).
Let’s use the combine_plots function to make one plot
from four separate plots that demonstrates all of these options. Let’s
compare desire to kill bugs only for low versus high disgust conditions
to see how much of a difference whether a bug is disgusting-looking or
not makes to the desire to kill that bug. We will generate the plots one
by one and then use combine_plots to merge them into one
plot with some common labeling. It is possible, but not necessarily
recommended, to make each plot have different colors or themes.
For example,
## selecting subset of the data
df_disgust <- dplyr::filter(bugs_long, condition %in% c("LDHF", "HDHF"))
## parametric t-test
p1 <- ggwithinstats(
data = df_disgust,
x = condition,
y = desire,
subject.id = subject,
xlab = "Condition",
ylab = "Desire to kill bugs",
type = "p",
conf.level = 0.99,
title = "Parametric test",
palette = "ggsci::nrc_npg"
)
## Wilcoxon signed-rank test (nonparametric test)
p2 <- ggwithinstats(
data = df_disgust,
x = condition,
y = desire,
subject.id = subject,
xlab = "Condition",
ylab = "Desire to kill bugs",
type = "np",
conf.level = 0.99,
title = "Non-parametric Test",
palette = "ggsci::uniform_startrek"
)
## Yuen's paired trimmed means test (robust test)
p3 <- ggwithinstats(
data = df_disgust,
x = condition,
y = desire,
subject.id = subject,
xlab = "Condition",
ylab = "Desire to kill bugs",
type = "r",
conf.level = 0.99,
title = "Robust Test",
palette = "wesanderson::Royal2"
)
## Bayes Factor for parametric t-test
p4 <- ggwithinstats(
data = df_disgust,
x = condition,
y = desire,
subject.id = subject,
xlab = "Condition",
ylab = "Desire to kill bugs",
type = "bayes",
title = "Bayesian Test",
palette = "ggsci::nrc_npg"
)
## combining the individual plots into a single plot
combine_plots(
plotlist = list(p1, p2, p3, p4),
plotgrid.args = list(nrow = 2L),
annotation.args = list(
title = "Effect of disgust on desire to kill bugs",
caption = "Source: Bugs dataset from `jmv` R package"
)
)
Grouped analysis with grouped_ggwithinstats
What if we want to carry out this same analysis but for each region (or gender)?
ggstatsplot provides a special helper function for
such instances: grouped_ggwithinstats. This is merely a
wrapper function around combine_plots. It applies
ggwithinstats across all levels of a
specified grouping variable and then combines list of
individual plots into a single plot. Note that the grouping variable can
be anything: conditions in a given study, groups in a study sample,
different studies, etc.
Let’s carry out the analysis separately for each gender. Also, let’s carry out pairwise comparisons to see if there are differences between every pair of conditions.

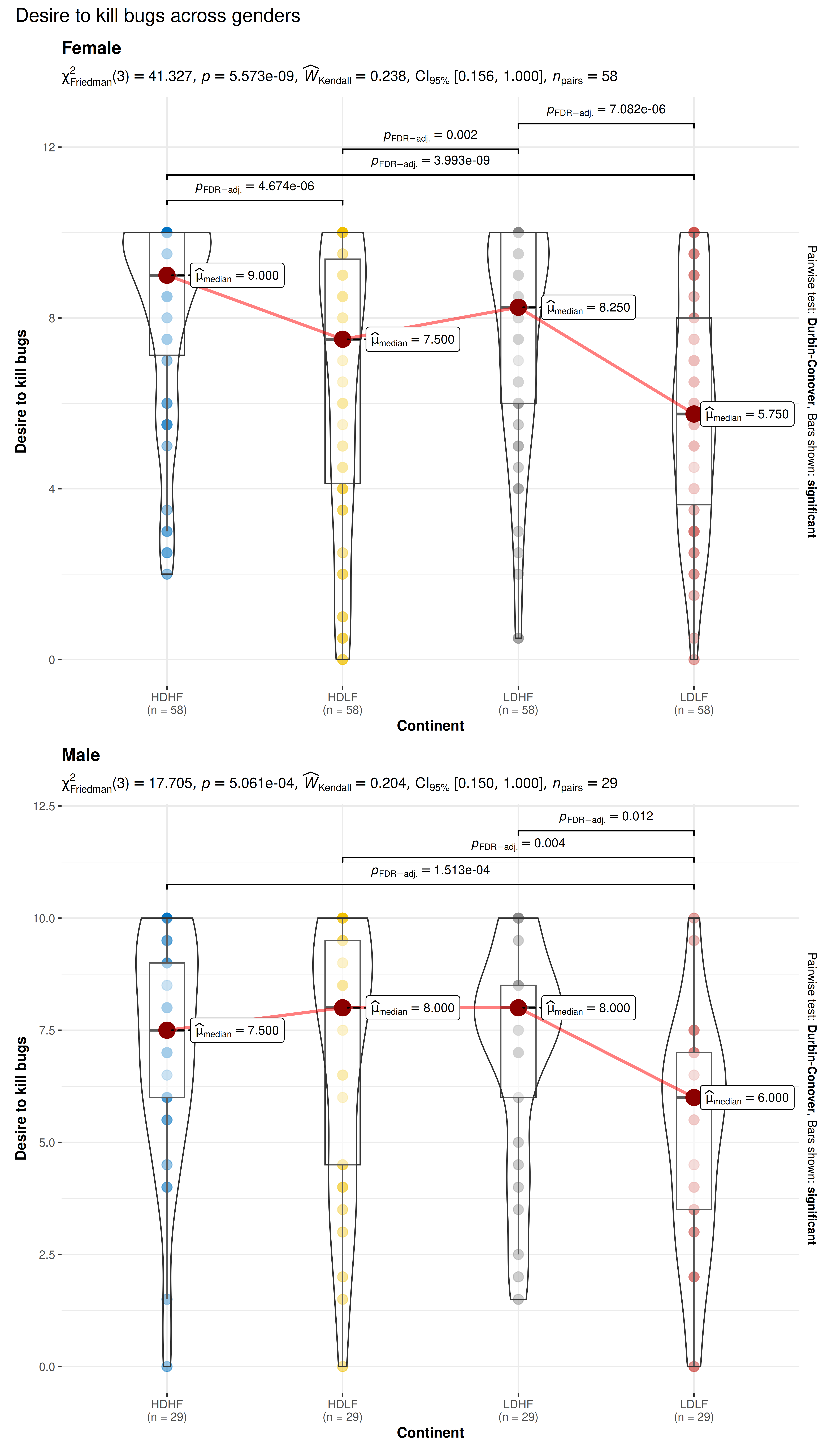

grouped_ggwithinstats(
## arguments relevant for ggwithinstats
data = bugs_long,
x = condition,
y = desire,
subject.id = subject,
grouping.var = gender,
xlab = "Condition",
ylab = "Desire to kill bugs",
type = "nonparametric", ## type of test
pairwise.display = "significant", ## display only significant pairwise comparisons
pairwise.alpha = 0.01, ## use a stricter alpha threshold to reduce clutter
p.adjust.method = "BH", ## adjust p-values for multiple tests using this method
palette = "ggsci::default_jco",
digits = 3,
## arguments relevant for combine_plots
annotation.args = list(title = "Desire to kill bugs across genders"),
plotgrid.args = list(ncol = 1)
)
Grouped analysis with ggwithinstats +
{purrr}
Although this grouping function provides a quick way to explore the
data, it leaves much to be desired. For example, the same type of test
and theme is applied for all genders, but maybe we want to change this
for different genders, or maybe we want to have different types of tests
for different genders. This type of customization for different levels
of a grouping variable is not possible with
grouped_ggwithinstats, but this can be easily achieved
using the purrr package.
See the associated vignette here: https://www.indrapatil.com/ggstatsplot/articles/web_only/purrr_examples.html
Between-subjects designs
For independent measures designs, ggbetweenstats
function can be used: https://www.indrapatil.com/ggstatsplot/articles/web_only/ggbetweenstats.html
Summary of graphics and tests
| graphical element |
geom used |
argument for further modification |
|---|---|---|
| raw data | ggplot2::geom_point() |
point.args |
| point path | ggplot2::geom_path() |
point.path.args |
| box plot | ggplot2::geom_boxplot() |
boxplot.args |
| density plot | ggplot2::geom_violin() |
violin.args |
| centrality measure point | ggplot2::geom_point() |
centrality.point.args |
| centrality measure point path | ggplot2::geom_path() |
centrality.path.args |
| centrality measure label | ggrepel::geom_label_repel() |
centrality.label.args |
| pairwise comparisons | ggsignif::geom_signif() |
ggsignif.args |
The statistical tests and effect sizes carried out for each
type are listed in the function documentation: https://www.indrapatil.com/ggstatsplot/reference/ggwithinstats.html
Extracting statistical details
All statistical details shown in the plot are also available as data
frames, which can be extracted with extract_stats(). The
returned list contains results from the test in the subtitle
(subtitle_data), the Bayesian test in the caption
(caption_data), and the pairwise comparisons
(pairwise_comparisons_data).
p <- ggwithinstats(bugs_long, condition, desire, subject.id = subject)
extract_stats(p)$subtitle_data
#> # A tibble: 1 × 18
#> term sumsq sum.squares.error df df.error meansq statistic p.value
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 condition 233. 984. 2.63 229. 4.30 20.6 8.27e-11
#> method effectsize estimate
#> <chr> <chr> <dbl>
#> 1 ANOVA estimation for factorial designs using 'afex' Omega2 (partial) 0.0783
#> conf.level conf.low conf.high conf.method conf.distribution n.obs expression
#> <dbl> <dbl> <dbl> <chr> <chr> <int> <list>
#> 1 0.95 0.0280 1 ncp F 88 <language>
extract_stats(p)$pairwise_comparisons_data
#> # A tibble: 6 × 6
#> group1 group2 p.value p.adjust.method test expression
#> <chr> <chr> <dbl> <chr> <chr> <list>
#> 1 HDHF HDLF 2.12e- 3 Holm Student's t <language>
#> 2 HDHF LDHF 1.12e- 1 Holm Student's t <language>
#> 3 HDHF LDLF 3.95e-12 Holm Student's t <language>
#> 4 HDLF LDHF 1.12e- 1 Holm Student's t <language>
#> 5 HDLF LDLF 3.97e- 3 Holm Student's t <language>
#> 6 LDHF LDLF 1.11e- 8 Holm Student's t <language>For grouped_ggwithinstats() plots,
extract_stats() returns one such list for each level of the
grouping variable.
Reporting
If you wish to include statistical analysis results in a publication/report, the ideal reporting practice will be a hybrid of two approaches:
the ggstatsplot approach, where the plot contains both the visual and numerical summaries about a statistical model, and
the standard narrative approach, which provides interpretive context for the reported statistics.
For example, let’s see the following example:

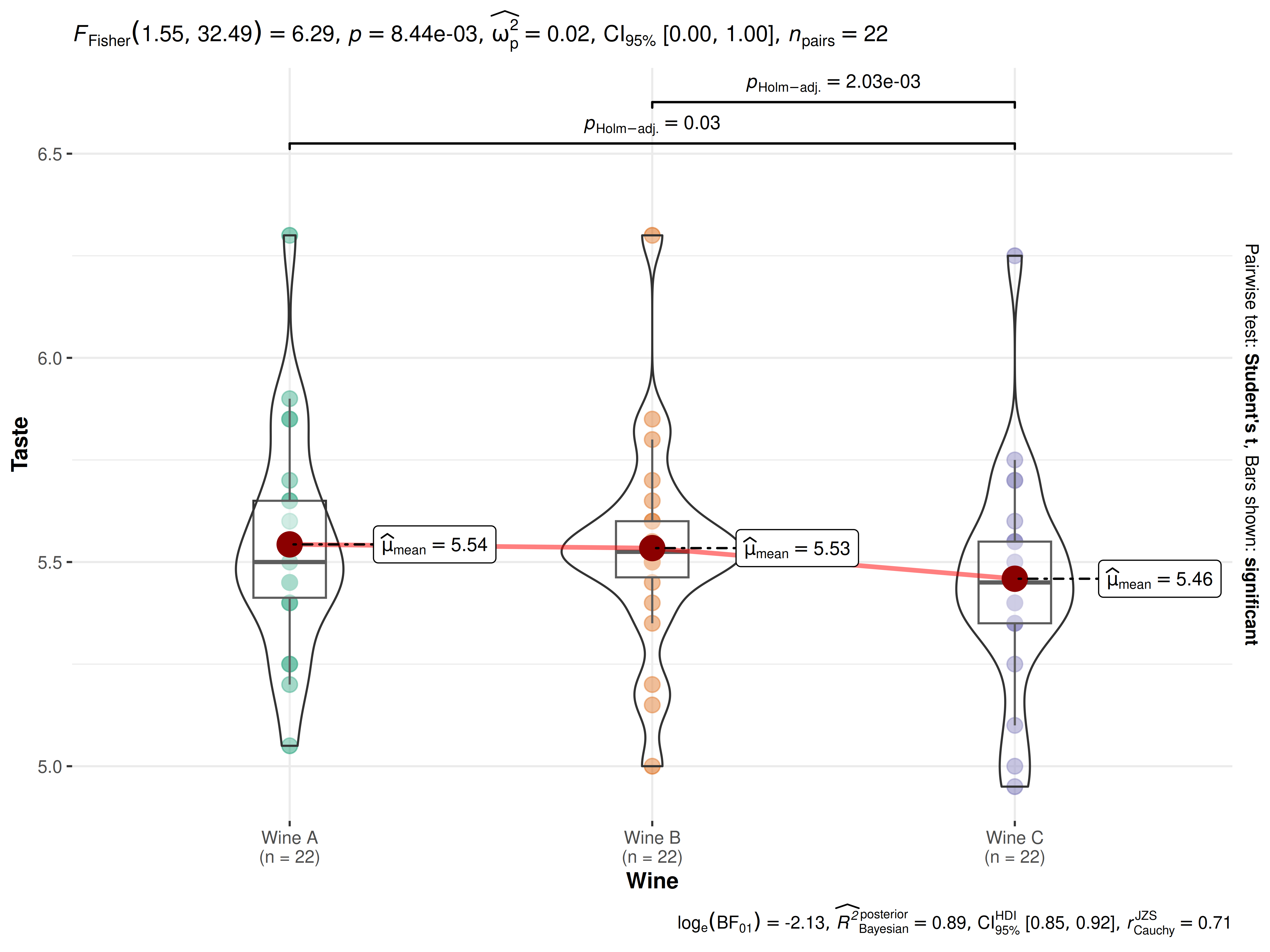

ggwithinstats(WRS2::WineTasting, Wine, Taste, subject.id = Taster)
The narrative context (assuming type = "parametric") can
complement this plot either as a figure caption or in the main text-
Fisher’s repeated measures one-way ANOVA revealed that, across 22 friends to taste each of the three wines, there was a statistically significant difference across persons preference for each wine. The effect size was small, as per Field’s (2013) conventions. The Bayes Factor for the same analysis revealed that the data were 8.41 times more probable under the alternative hypothesis as compared to the null hypothesis. This can be considered moderate evidence (Jeffreys, 1961) in favor of the alternative hypothesis. This global effect was followed by post hoc pairwise t-tests, which revealed that Wine C was preferred across participants to be the least desirable compared to Wines A and B.
Similar reporting style can be followed when the function performs t-test instead of a one-way ANOVA.
Suggestions
If you find any bugs or have any suggestions/remarks, please file an
issue on GitHub: https://github.com/IndrajeetPatil/ggstatsplot/issues
