Grouped scatterplots with marginal distributions and statistical results

Source: R/ggscatterstats.R
grouped_ggscatterstats.Rd

Applies ggscatterstats() across all levels of grouping.var and combines the resulting plots using combine_plots().

Usage

grouped_ggscatterstats(
  data,
  ...,
  grouping.var,
  plotgrid.args = list(),
  annotation.args = list()
)

Arguments

data

A data frame (or a tibble) from which variables specified are to be taken. Other data types (e.g., matrix, table, array, etc.) will not be accepted. Additionally, grouped data frames from {dplyr} should be ungrouped before they are entered as data.

...

Arguments passed on to ggscatterstats

label.var

Variable to use for point labels entered as a symbol (e.g. var1).

label.expression

An expression evaluating to a logical vector that determines the subset of data points to label (e.g. y < 4 & z < 20). While using this argument with purrr::pmap(), you will have to provide a quoted expression (e.g. quote(y < 4 & z < 20)).

point.label.args

A list of additional aesthetic arguments passed to ggrepel::geom_label_repel(), which displays the point labels.

smooth.line.args

A list of additional aesthetic arguments passed to ggplot2::geom_smooth(), which displays the regression line. Its confidence band uses conf.level.

marginal

Logical that decides whether marginal distributions are plotted on the axes using {ggside} (Default: TRUE).

point.width.jitter,point.height.jitter

Amount of jitter (in data units) in x and y direction, respectively, passed to ggplot2::position_jitter() (Default: 0, i.e., no jitter). Do not specify the jitter in point.args, because it is shared by the points and their labels.

xsidehistogram.args,ysidehistogram.args

A list of arguments passed to ggside::geom_xsidehistogram() and ggside::geom_ysidehistogram(), respectively, to change the marginal histograms.

xsidehistogram.scale,ysidehistogram.scale

A list of arguments passed to ggside::scale_xsidey_continuous() and ggside::scale_ysidex_continuous(), respectively, to control the scale of marginal histograms (e.g., breaks, limits, transform). Default is list() (no modifications).

x

The column in data containing the explanatory variable to be plotted on the x-axis.

y

The column in data containing the response (outcome) variable to be plotted on the y-axis.

type

A character specifying the type of statistical approach:

  • "parametric"

  • "nonparametric"

  • "robust"

  • "bayes"

You can specify just the initial letter (e.g. "np" or "bf"). Matching is on the initial lowercase letter only, so any other value (including capitalized values such as "Bayes") falls back to "parametric" without a warning.

digits

Number of digits for rounding or significant figures. May also be "signif" to return significant figures or "scientific" to return scientific notation. Control the number of digits by adding the value as suffix, e.g. digits = "scientific4" to have scientific notation with 4 decimal places, or digits = "signif5" for 5 significant figures (see also signif()).

conf.level

Scalar between 0 and 1 (default: 95% confidence/credible intervals, 0.95).

tr

Trim level for the mean when carrying out robust tests. In case of an error, try reducing the value of tr, which is by default set to 0.2. Lowering the value might help.

bf.prior

A number between 0.5 and 2 (default 0.707), the prior width to use in calculating Bayes factors and posterior estimates. In addition to numeric arguments, several named values are also recognized: "medium", "wide", and "ultrawide", corresponding to r scale values of 1/2, sqrt(2)/2, and 1, respectively. In case of an ANOVA, this value corresponds to scale for fixed effects.

xlab

Label for x axis variable. If NULL (default), variable name for x will be used.

ylab

Label for y axis variable. If NULL (default), variable name for y will be used.

bf.message

Logical that decides whether to display the Bayes Factor in favor of the null hypothesis as a caption. Relevant only for parametric tests (Default: TRUE).

results.subtitle

Logical that decides whether the results of statistical tests are displayed as a subtitle (Default: TRUE). Setting this to FALSE also skips the automatic Bayes Factor caption. Other plot details have their own arguments.

subtitle

The text for the plot subtitle. Used only if results.subtitle = FALSE.

caption

The text for the plot caption. It will be replaced by the Bayes Factor caption whenever that is displayed (see bf.message).

point.args

A list of additional aesthetic arguments passed to ggplot2::geom_point().

ggplot.component

A {ggplot2} component, or a list of components, to add to the plot (Default: NULL). This is mostly helpful for the grouped_ variants, where it is applied to each individual plot.

ggtheme

A {ggplot2} theme (Default: theme_ggstatsplot()). Any {ggplot2} theme (e.g., ggplot2::theme_bw()) or theme from an extension package (e.g., ggthemes::theme_fivethirtyeight()) can be used. Note that some themes remove plot details. For example, ggthemes::theme_fivethirtyeight() removes the secondary Y-axis, which ggbetweenstats() uses to show details about pairwise comparisons.

grouping.var

A single grouping variable. A separate plot is created for each of its levels (in factor level order, or in order of appearance for character variables). Rows with a missing value in this variable are removed.

plotgrid.args

A list of additional arguments passed to patchwork::wrap_plots(), except for guides, which has its own argument.

annotation.args

A list of additional arguments passed to patchwork::plot_annotation().

Value

A patchwork object combining one plot per level of grouping.var (see combine_plots()). Applying extract_stats() to it returns a list with the statistical details for each of these plots.

Details

Rows with a missing value in either x or y are removed before plotting and analysis.

For details, see: https://www.indrapatil.com/ggstatsplot/articles/web_only/ggscatterstats.html

See also

ggscatterstats(), ggcorrmat(), grouped_ggcorrmat()

Examples

# for reproducibility
set.seed(123)

library(dplyr, warn.conflicts = FALSE)
library(ggplot2)

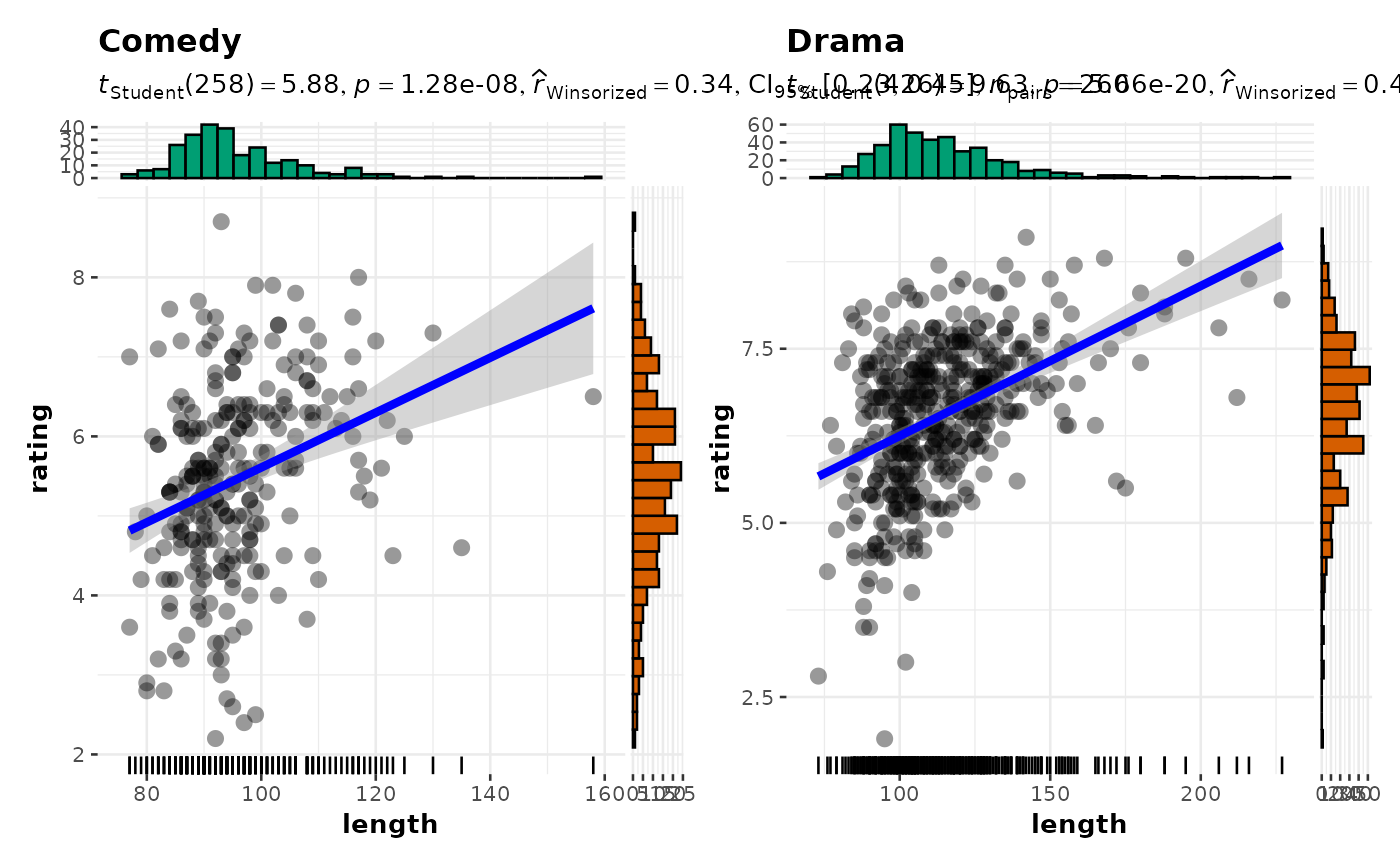

grouped_ggscatterstats(
  data             = filter(movies_long, genre == "Comedy" | genre == "Drama"),
  x                = length,
  y                = rating,
  type             = "robust",
  grouping.var     = genre,
  ggplot.component = list(geom_rug(sides = "b"))
)

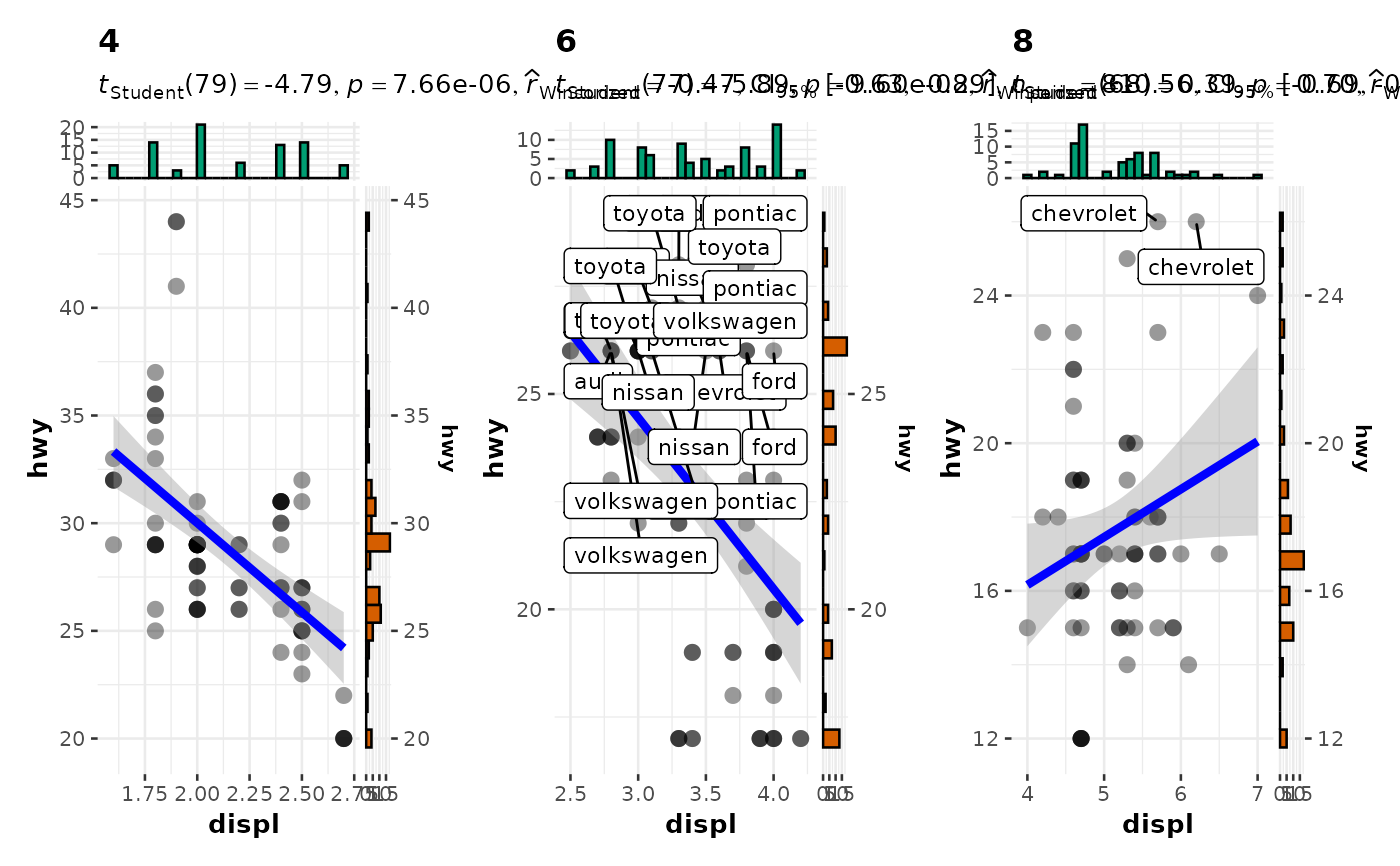

# label points matching an expression
grouped_ggscatterstats(
  data             = filter(ggplot2::mpg, cyl != 5),
  x                = displ,
  y                = hwy,
  grouping.var     = cyl,
  type             = "robust",
  label.var        = manufacturer,
  label.expression = hwy > 25 & displ > 2.5,
  ggplot.component = scale_y_continuous(sec.axis = dup_axis())
)

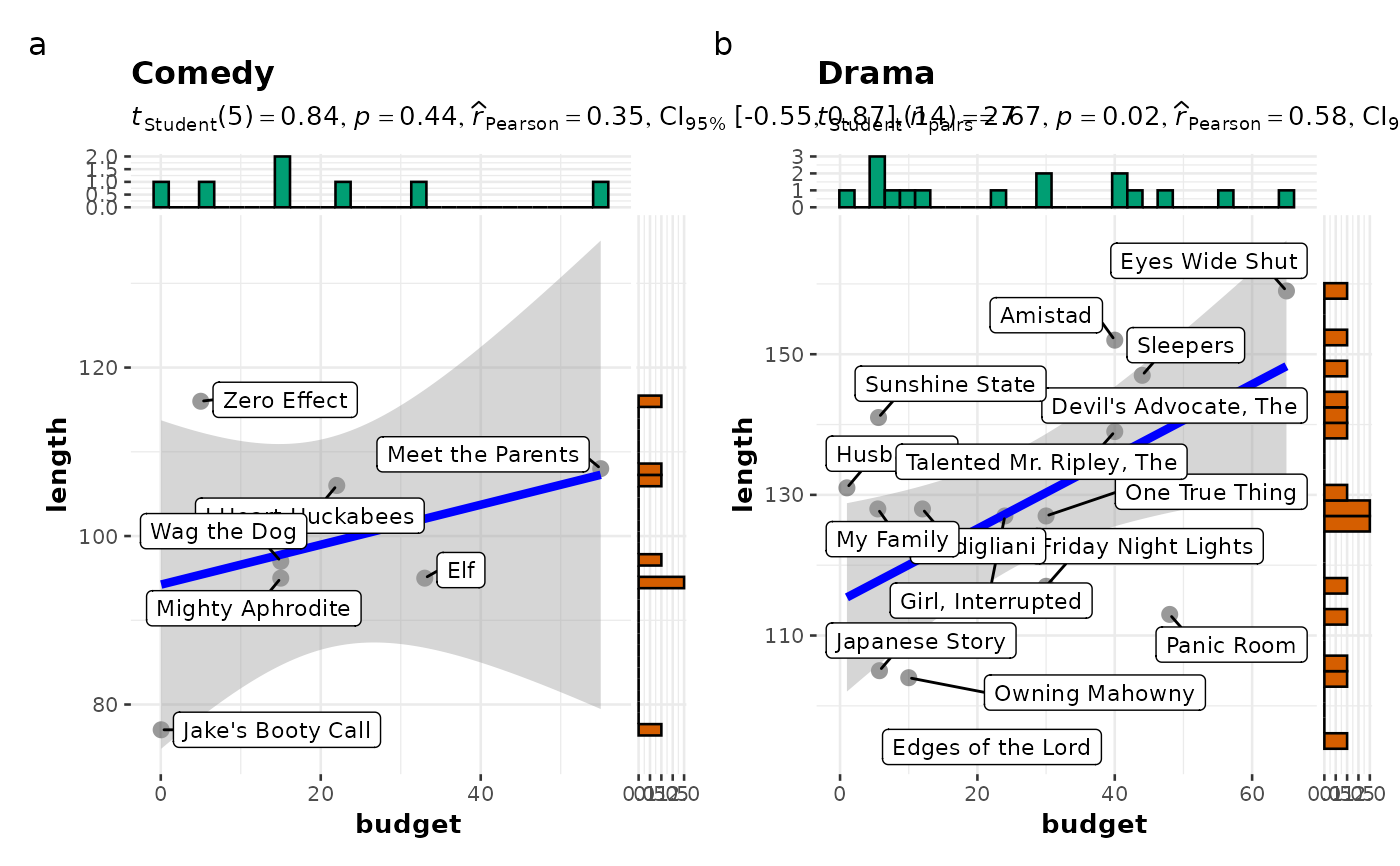

# label all points
grouped_ggscatterstats(
  data            = filter(movies_long, rating == 7, genre %in% c("Drama", "Comedy")),
  x               = budget,
  y               = length,
  grouping.var    = genre,
  bf.message      = FALSE,
  label.var       = "title",
  annotation.args = list(tag_levels = "a")
)
